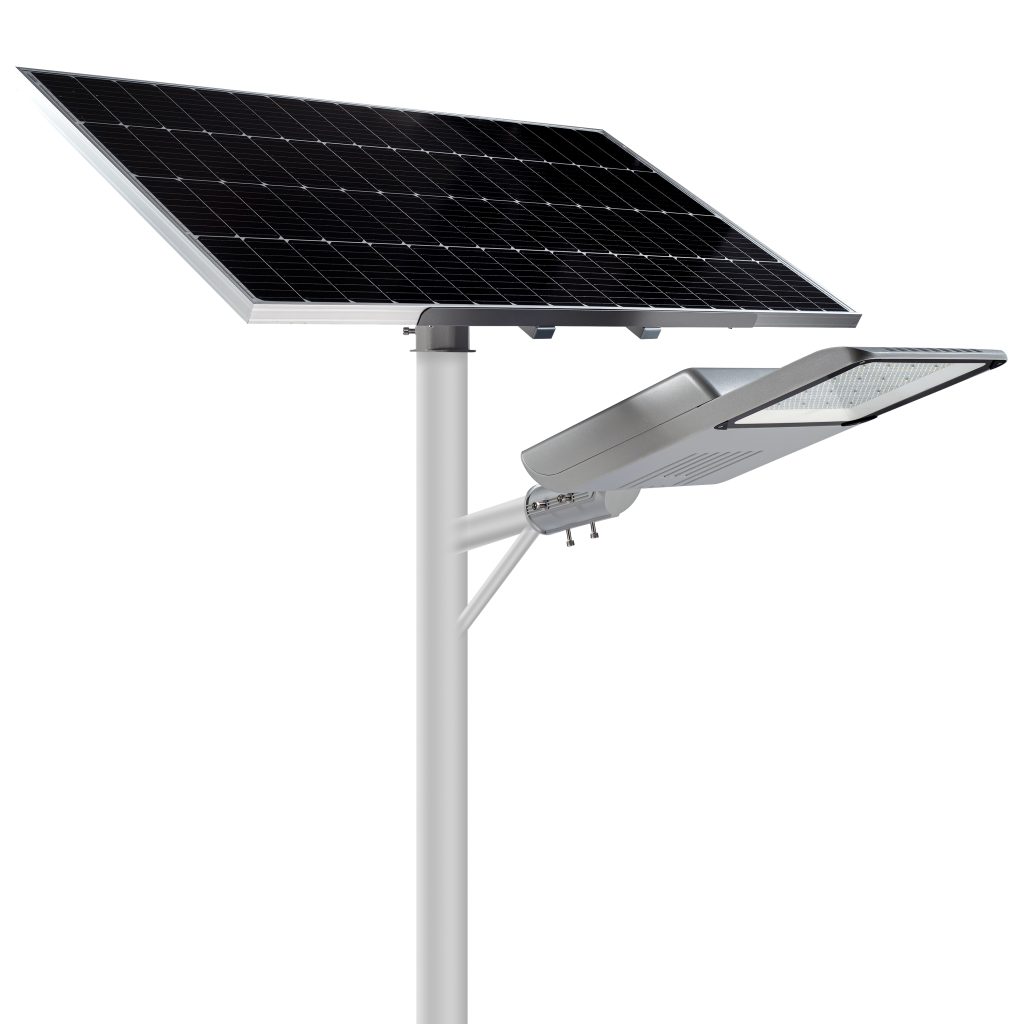

Split Solar Street Light 120W

High-Efficiency Solar Charging - Monocrystalline Silicon Solar Panel - Integrated MPPT Controller for optimized power conversion - Fast Charging: Full recharge in 4-6 hours
User-Friendly Design - Easy Installation Maintenance - Replaceable Battery Compartment for convenient servicing
Reliable Energy Storage - LiFePO4 Battery - Extended Backup: Supports 3-5 rainy days without sunlight - Long Lifespan: 2,500+ cycles | 6-8 years durability
Superior Lighting Performance - High Lumen Output: 180 Im/W efficiency - 50,000-Hour Lifespan
Premium LED Chip - Lumileds technology for bright, consistent light
Optimal Light Quality - High-Transmittance Optical Lens - Soft, Uniform Illumination
Reduced Glare Light Pollution

Please carefully read the manual before operation.
Repairs, Adjustments, or Maintenance should be accomplished only by trained or authorized personnel.
Before installation, please select the direction of the light source according to the road body and the position of the light source to meet the maximum irradiation area of the road.
The solar street light must be installed on the sun-facing surface of the solar panel without blocking shadows throughout the day.
The solar street light should be avoided close to the heat source, so as not to affect the life of the lights.
In order to avoid misidentification of the lighting control system and cause incorrect operation, do not install the light source above the solar cell.
The LED luminaire suits to both indoor and outdoor, BUT insure working condition do not exceed data sheet specified.
Anti vibration is required during transportation and installation.
Insure mounting position is solid without shaking.
LED luminaire must be installed in a safety location, no fire, no smoke.

Model	LFT-120W	Solar panel conversion efficiency	23.8%
Power	120W	Battery	LiFePO4 battery 25.6V 45AH 1152WH
Luminous flux	21600LM	Charging time	4-6 hours
Efficacy	180LM/W	Discharging time	3-5 rainy days
LED	SMD3030/SMD5050/SMD7070	Cycle life	2500 cycles SOH80%

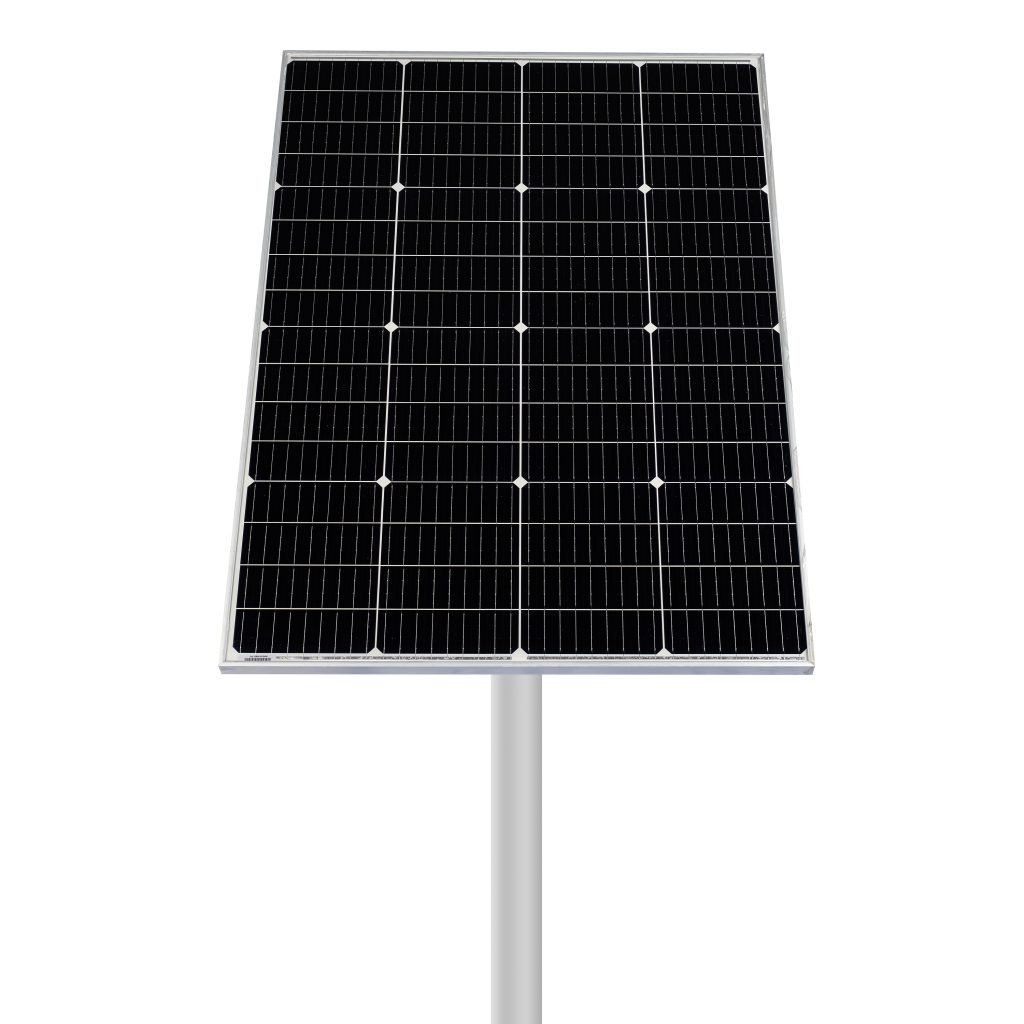

CCT	2700K-6500K	Solar Panel	36V/240W Mono
Beam angle	T2/T3/T4/T5 transmittance >95%	Solar panel size	154076030mm
Working Temp.	-25 - 65℃	Product size	81032095mm
Lamp post diameter	65/76mm	Lighting Mode	Remote control + Segemented time control
Materials	Diecast aluminum + tempered glass	Suggested install height	12 - 15M
Controller	MPPT controller + intelligent light control + time control + radar sensing	Neigh weight	12.85kgs
