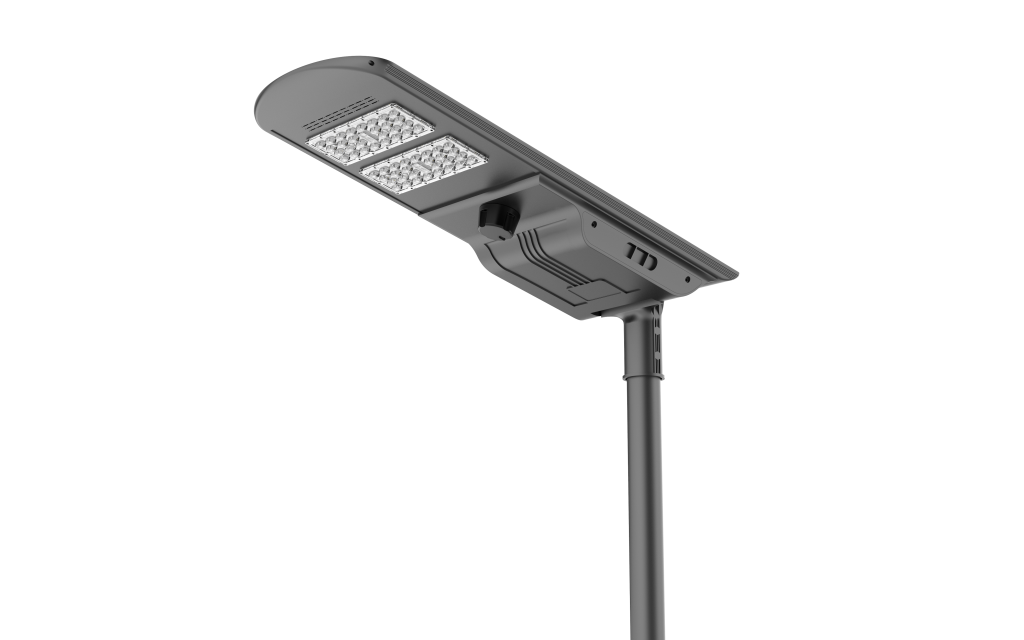

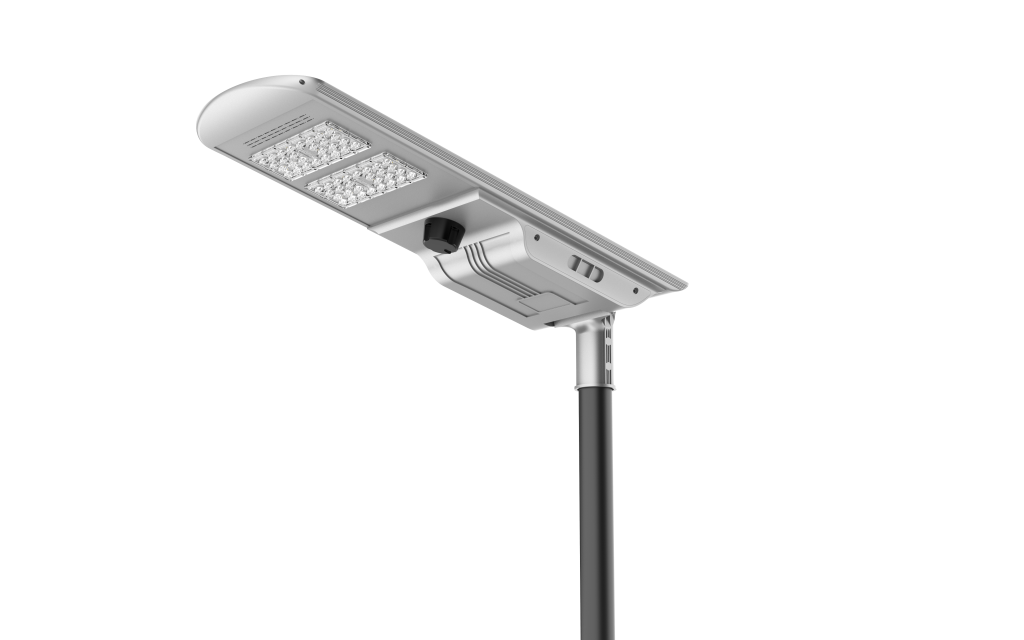

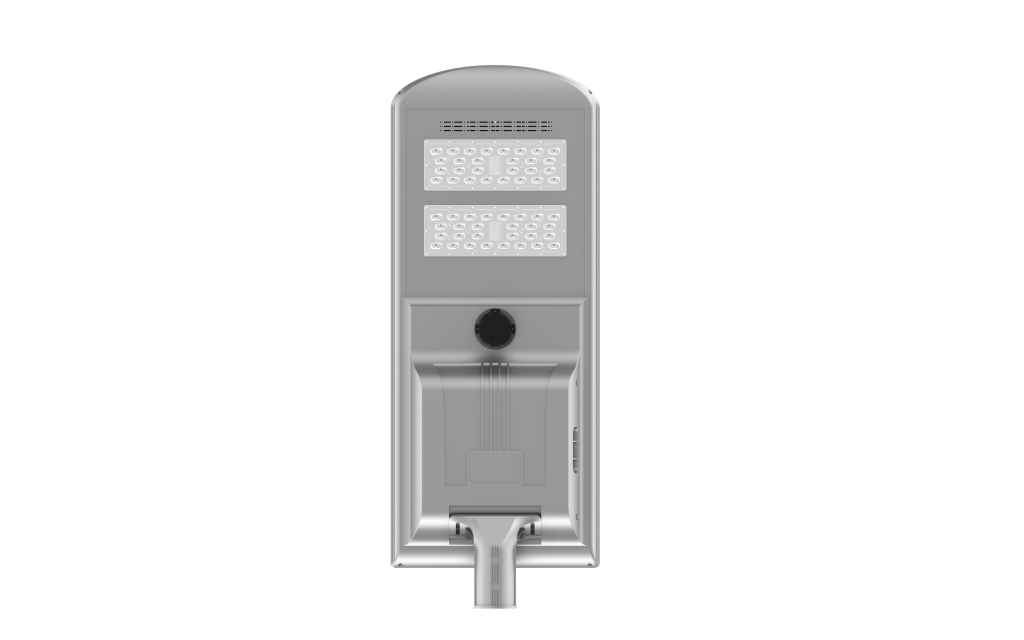

LKX ALL-in-ONE LED Solar Street Light 60W

1. Premium Heat Dissipation - The radiator is made of ADC12 die-casting + 6063 aluminum, which istreated with thickened anti-corrosion paint.
2. Optimal Light Performance - Direct luminous design for maximum efficiency - High-transmittance PC lens (95%+light transmission)
3. Easy & Cost-Effective Installation - No additional wiring required reducesinstallation costs - Multiple mounting brackets for flexible placement
4. High-Efficiency Lighting - 220 Im/W ultra-bright output - Lumileds LED chips for superior performance and longevity
5. Reliable Warranty & Support - 3-years warranty for guaranteed quality - Lifetime cost-price maintenance for long-term affordability

1. The installaton of solar street lights should be carried out in sunny daysbecause it cannot be quickly charged ater installaton in rainy days, anddischarge is carried out at night, which affects the use effect
2. Before installaton, please select the directon of the light source according to the road body and the positon of the light source to meet the maximum irradiaton area of the road
3. The angle of the battery board should be adjusted to the most suitable place. Generally, a 15 angle is recommended
4. The installaton locaton needs to avoid the shadow of obstacles such as houses, trees,etc, which will reduce the power generaton efficiency of the solar panel and shorten its working tme

Model	LKX-60W	Solar panel conversion efficiency	23.8%
Power	60W	Battery	LiFePO4 battery 12.8V 45AH 576WH
Luminous flux	13200LM	Charging time	4-6 hours
Efficacy	220LM/W	Discharging time	2-3 rainy days
LED	SMD5050	Cycle life	3000 cycles SOH80%
CCT	2700K-6500K	Solar Panel	18V/93.5W Mono
Beam angle	T2-85*150° Optional	Solar panel size	9854504mm
Working Temp.	-25 - 65℃	Product size	1105457159mm
Lamp post diameter	82mm	Lighting Mode	Intelligent control + segmented time control
Materials	Diecast aluminum	Suggested install height	6-7M
Controller	MPPT controller + intelligent light control + time control + radar sensing	Neigh weight	16.86kgs
